WE HAVE A PLEASURE TO OFFER YOU THREE TYPES OF PHOTO STUDIOS AND 360 DEGREES VIDEO PHOTO STUDIOS EQUIPPED WITH ROTARY PLATFORMS

OPTIMA 360

Professional, 360 degree, U-shaped Photo Video Studio (innovative, quick to install)

DECORIA 360

Studio Expo and 360-degree L-shaped Photo Video Studio (unique visual qualities)

PERFECTA 360

360-degree Photo Video Studio with U-shaped cyclorama (solution for the most demanding customers)

OPTIMA 360 is a professional 360 degree U-shaped photo and video Studio, innovative and quick to install, DECORIA 360, in addition to the studio function, enables in a rotating motion the presentation of products in a visually attractive, L-shaped housing, and PERFECTA 360 is a cyclorama designed for the most demanding customers.

PHOTO STUDIOS

OPTIMA 360

It is a professional photo and video studio for creating materials in 360-degree technology. We have used a number of innovative solutions that allow you to achieve amazing results in a quick and simple way. The most important of them is the use of a rotating platform that allows you to rotate the photographed or filmed object, which is necessary to create 360-degree animations or videos, one of the most important trends in e-commerce today. You can find more information about the rotating platforms in the “Equipment” section.

The walls of the Optima 360 Studio are U-shaped, thanks to which the background is uniform, without visible edges, refractions and shadows. The equal distance of the rear wall in the shape of a semicircle from the center of the rotating platform allows for gentle lighting of the back of the photographed object.

Other parameters such as the light color of 5.600K and a very high color rendering index RA (CRI)> 95 will make the colors in the photos look very natural.

It is of great importance that thanks to specialized LED modules and a diffusion fabric with specially selected parameters, the height of the light box with the supporting structure is 30 cm. Thanks to this, the OPTIMA 360 studio can be installed in quite low rooms, which was unthinkable until recently.

The great advantage of OPTIMA 360 is the framework structure of the studio, covered with a taut white fabric without joints, thanks to which its assembly is quick without the need for dusting during filling, grinding and volatile substances during painting, which is an inherent element of works using traditional technologies.

VISUALS

REALIZATIONS

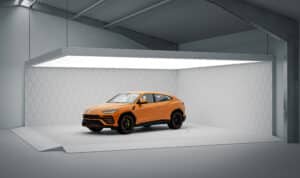

DECORIA 360

This studio, in addition to the function of creating photo-video materials in 360-degree technology, plays an important role as an exhibition. This dual solution is often used in car showrooms, large-format stores, museums and other showrooms. This studio, in addition to the function of creating photo-video materials in 360-degree technology, plays an important role as an exhibition. This dual solution is eagerly used in car showrooms, large-format stores, showrooms and museums. When no photo-video sessions are taking place, the rotating platform, which is mounted in the floor, allows the rotation of the exhibited object, attracting the attention of customers. In the case of valuable items, it allows them to be displayed from all sides without having to let viewers near the exhibit. You can find more information about the rotating platforms in the “Equipment” section.

The walls of the Decoria 360 Studio are L-shaped, thanks to which they provide free access and visibility from two sides, which is why the studio is most often located in the corners of the rooms.

We obtain a decorative character by installing three-dimensional wall panels. Their white color does not interfere with the original color of the photographed object, while the beautiful play of chiaroscuro enhances the aesthetic experience.

Everyone knows that the most important element in photography is light with appropriate parameters. We are proud of our “artificial sky” solution, which shines evenly across the entire ceiling surface with a luminous flux of over 600.000 lumens.
Other parameters such as the light color of 5.600K and a very high color rendering index RA (CRI)> 95 will make the colors in the photos look very natural.

It is of great importance that thanks to specialized LED modules and a diffusion fabric with specially selected parameters, the height of the light box with the supporting structure is 30 cm. Thanks to this, the DECORIA 360 studio can be installed in quite low rooms, which was unthinkable until recently. Due to the arrangement of the walls, it is necessary to suspend the light box to the ceiling structure of the room.

Optionally, the DECORIA 360 light box can be equipped with RGB LED light sources, thanks to which fascinating color effects are obtained during the display function.

VISUALS

REALIZATIONS

PERFECTA 360

This is a photo-video studio for the most demanding photographers and filmmakers, built as a cyclorama. You can perform any type of sessions there, including those in 360 degree technology. For this, there is a mounted rotating platform that allows you to rotate the photographed or filmed object, which is necessary to create 360-degree animations or videos, currently one of the most important e-commerce trends. You can find more information about the rotating platforms in the “Equipment” section.

The walls of the PERFECTA 360 Studio are U-shaped. All three walls are straight, but what is characteristic of the cyclorama, there are no right-angle corners between them, only arches with a radius of 500 mm, so the background is uniform, with no visible edges, refractions and shadows. The use of specialized paint on the walls and floor of the studio allows the object to be suspended in space and illuminated from all sides.

Professionals will appreciate the “artificial sky” solution developed by us, which shines evenly across the entire surface of the ceiling with a luminous flux of over 600.000 lumens. Other parameters, such as the light color of 5.600K and a very high color rendering index RA (CRI)> 95, will make the colors in the photos look very natural and meet the expectations of the most demanding customers.

It is of great importance that thanks to specialized LED modules and a diffusion fabric with specially selected parameters, the height of the light box with the supporting structure is 30 cm. It can be mounted on the wall structure as a monolith or suspended from the ceiling structure of the room at a specific distance from the studio walls.

VISUALS

REALIZATIONS

equipment

ROTARY PLAFORM

The use of rotating platforms in photo-video studios makes them actual studios for creating photos and videos in 360-degree technology. It is currently one of the most important trends in eCommerce. According to Adobe’s What Shoppers Want Study, 91 percent of mid-sized and large online businesses say 360-degree photography is a must. On the other hand, the research conducted by the “Internet Retailer Magazine” shows that 360 product photography implemented in online stores increased conversion rates by about 13%.

These spectacular results are due to the fact that buyers can now interact with the product, zoom in, rotate and view it from any angle, having full control of what they want to see, not be satisfied with what the seller has allowed them to see.

In addition to increasing sales, the use of 360-degree photos increases brand retention, inspires trust as a seller who is not afraid to show the product from all sides, i.e. having nothing to hide, and thus reduces the number of returns due to non-compliance with expectations.

As a manufacturer of rotating platforms with many years of experience, we have selected the following models from our extensive offer to be used in photo-video studios:

1. POL/4.5M-1T/2.5T/WM with manual drive

It is the simplest, low-budget model of a rotary platform with a diameter of 4.5 meters and a load capacity of 1 or 2.5 tons.

It allows you to manually rotate an object placed on it in order to set it at different angles in relation to a fixed camera. The perfect bearing of the platform enables trouble-free rotation of even heavy 2.5-tonne vehicles standing on it with one hand or even a finger (see the video).

The very low platform height, depending on the type of studio floor, from 104 to 130 mm, allows for comfortable access to the platform with the use of short ramps, thus saving space. The rotary platform can also be installed in a mounting niche in the floor.

Technical data of the rotary platform POL/4.5M-1T/2.5T/WM:

rotary platform diameter: 4.5 m,
the height of the rotary platform: from 104 to 130 mm depending on the type of floor,
usable load capacity of the platform: 1 t or 2.5 t.

Advantages:

solid and durable structure with high load capacity,
very low height,
high-quality wheels with non-greasing ball bearings,
stable operation without waving effect when rotating,
little force required to set in motion and turn,
no service required,
low level of noise.

2. POL/5M-1T/2.5T/3.5T/EXPO remote pilot operated

It is the most popular model of a rotary platform with a diameter of 5 meters and a load capacity of 1 or 2.5 or 3.5 tons.

The movement of the rotating platform is realized by a powerful and precise servo drive, and the starting and stopping is done by a radio remote control. Speed control, reverse rotation and the safety stop button are located on the control box.

The excellent bearing of the platform allows for quiet rotation of even heavy vehicles weighing up to 3.5 tons standing on it. The very low platform height, depending on the type of studio floor, from 104 to 130 mm, allows for comfortable access to the platform with the use of short ramps, thus saving space. The rotary platform can also be installed in a mounting niche in the floor.

Technical data of the rotary platform POL/5M-1T/2.5T/3.5T/EXPO:

rotary platform diameter: 5 m,
the height of the rotary platform: from 104 to 130 mm depending on the type of floor,
usable load capacity of the platform: 1 t lub 2.5 t lub 3.5 t,
power supply: 230 V,
maximum rotation speed: 0.7 rpm,
platform speed regulation,
emergency button “stop” on the control box,
remote control (on / off).

Advantages:

solid and durable structure with high load capacity,
very low height,
high-quality wheels with non-greasing ball bearings,
stable operation without waving effect when rotating,
low level of noise,
voltage 230 V,
smooth speed control,
the ability to change the direction of rotation,
easy control via radio remote control.

3. POL/5M-1T/2.5T/FOTO controlled by Object 2VR Studio

The photo platform Foto has all the advantages and functions such as the POL/5M-1T/2.5T/EXPO rotary platform, and also has extensive control automation, which in combination with a camera and a control program, allows you to fully automatically take 360 degrees photos (animations). In practice, this means that the photographer after setting the parameters on the computer (e.g. the number of photos for full turnover, exposure time), he does not have to perform any activities.

The platform will rotate the set angle and stop. The camera will take a photo and, after closing the shutter, will pass the command to the rotary machine to perform the next turn by the set angle. The process will repeat until full turnover, but any number of photos can be taken.

Object2VR software enables the creation of single-row, multi-row and multi-rod object films. Supports JPEG, PNG, TIFF, PSD and QuickTime VR source files.

Object2VR allows you to place hotspots, e.g. with pop-up information, distinguish specific areas of the object or open other object-oriented films. The hotspot editor makes it easier to apply hotspots to a single image or to the whole project.
The skin editor is a powerful tool that allows you to design your own appearance of the player. You can also add animations, sound effects and non -standard buttons, thanks to which the movie will become more attractive.
Multi-resolution allows users to see more details in generated object films thanks to multi-level, smooth approximation and additional control. The supported output formats are HTML5 and Flash.
Retouch can be done directly in Object2VR. You can cut, use the mask and adjust the movement of the object without leaving the program.
Plugins for CMS systems allow you to efficiently publish the designed interactive object -oriented films directly to the website made in WordPress, Joomla or Drupal using a special format.

Technical data of the rotary platform POL/5M-1T/2.5T/FOTO:

rotary platform diameter: 5 m,
the height of the rotary platform: from 104 to 130 mm depending on the type of floor,
usable load capacity of the platform: 1 t lub 2.5 t,
power supply: 230 V,
maximum rotation speed: 0.7 rpm,
sequential rotational movement triggered from a computer/control software together with the camera synchronization,
control software: Object 2VR 3 Studio (single license) http://ggnome.com/object2vr,
emergency button “stop” on the control box.

Advantages:

solid and durable structure with high load capacity,
very low height,
high-quality wheels with non-greasing ball bearings,
stable operation without waving effect when rotating,
low level of noise,
voltage 230 V,
the ability to change the direction of rotation,
additional control using a radio remote control,
precise setting of the platform in position,
process automation – high performance and time saving.

Integrated lighting

Nobody needs to be convinced that the most important element in photography is light with appropriate parameters. In our photo-video studios we install lighting like “artificial sky”, which shines evenly across the entire surface of the ceiling with a luminous flux of over 600,000 lumens. It is our original solution, whose important components are elements such as specialized LED light sources, diffusion fabric with specially selected parameters, reflectors, transformers and drivers.

All parameters have been calculated and selected on the basis of our many years of experience. Due to their optimization, the height of the light box together with the supporting structure is 30 cm, in some cases even up to 20 cm. As a result, you can use professional overhead lighting without the need for very high rooms.

Parameters such as the light color of 5.600K and a very high color rendering index RA (CRI)> 95 will make the colors in the photos look very natural.

Parameters and advantages:

state-of-the-art LED technology,
professional light quality for photographing and filming,
light evenly and gently diffused,
luminous flux: 2.590 lm / m,
illuminance: ~ 12.000 lx,
light color: 5.600 K,
color rendering index: RA (CRI)> 95,
ceiling illuminating surface: 45 m2,
ceiling height from the floor: approx. 2.8 m,
remote control by means of a remote control – on / off, change of intensity, zone control.

Illuminance 12.000 lx

Comparison of the light intensity in the studio and in the hall

Division of lighting into zones

LIGHT BOX

It has the same functions and advantages as the integrated lighting described in the above point, with the difference that it is a self-supporting structure that does not need to be supported on the studio walls. However, it must be suspended from the ceiling structure with steel cables.

It is an obligatory equipment in the DECORIA 360 studio version and optional in the PERFECTA 360 studio.

Due to its autonomous structure, the artificial sky light box can also be installed without the studio development, e.g. in showrooms, museums, hotels etc.

studio gate

The gate is made of two movable structural elements that can be set at any angle on both sides of the camera, leaving only the lens visible. Such exposure closes the area behind the camera that could be reflected in highly glossy surfaces, e.g. car paint.

Light construction allows easy movement. When the studio is not in use, the gate can be completely closed, forming the fourth wall of the studio, thus protecting it and not taking up additional space.

It can be optional equipment in the OPTIMA 360 and PERFECTA 360 photo studio versions.

PORTFOLIO

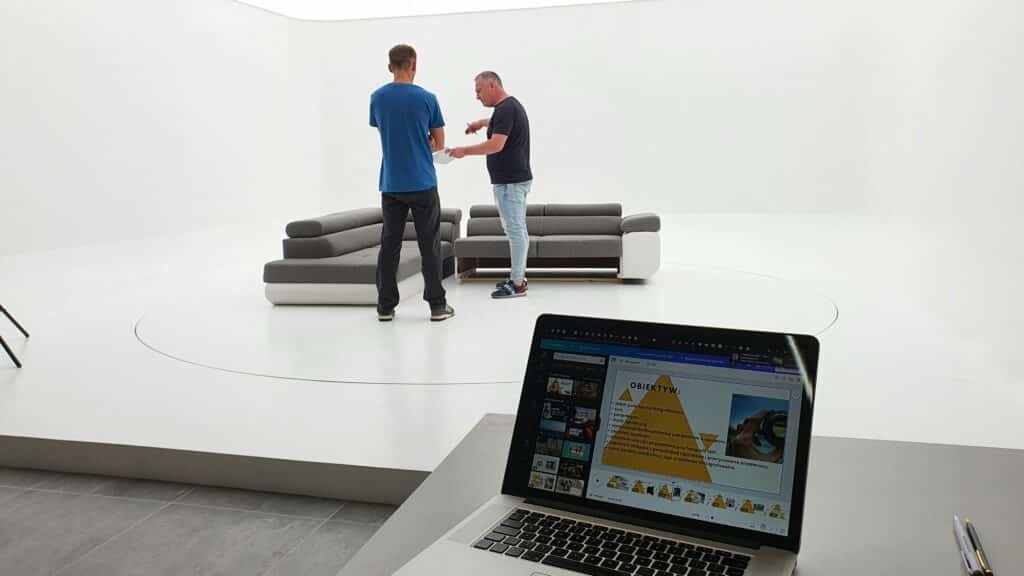

in-service trainings

Even the best photo studio will not guarantee the creation of good photos if the people taking the pictures lack knowledge, especially regarding 360-degree photography. Therefore, as a complement to the offer, we propose to conduct a training by the artist photographer Maciej Miętkiewicz, specializing in the subject of 360-degree photography not only in theory, but also in practice, because since 2018 he has been using the PO/5M-2.5T/FOTO rotating platform of our production.

The training program:

Digital camera and parameter selection - time, aperture, ISO, white balance, file format.
Camera lens - time, perspective, selection of focal length, determining the center between the object and the camera, height parameter, focusing on the object in 360° photography, risks related to the perspective (focal length and redrawing of the object), evaluation of the shape of the object and its correct photographing.
Rotary platform and its operation - synchronization of the camera with the platform, project, settings, camera, turntable.
Photographer's accessories - necessary cables, tripod, camera head.
Lighting - based on the installed solution.
OBJECT 2VR - the basics of 360° photography management software.
Preparation of the object for photography.
Q&A

Trainer:

Maciej Miętkiewicz, an artist photographer.

A graduate of the Faculty of Multimedia at the Academy of Fine Arts in Poznań, a specialist in advertising photography, dealing with the implementation of professional photo sessions for companies from the automotive, furniture, FMCG, HoReCa, clothing, pharmaceutical and cosmetic industries.

In 2018, as one of the first professional photographers in Poland, he equipped his studio with a rotating platform for 360-degree photography PO/5M-2.5T/FOTO of our production.

As a result, he was able to combine his extensive knowledge, passion and creativity with the latest rotary technology and realize great photo and video sessions in 360-degree technology, indispensable in the e-commerce sector today. He is the author of the sentence: “Today I cannot imagine not having a rotary platform in the advertising photography industry. It’s as if a Michelin-starred chef doesn’t have a chopping board.”

Maciej Miętkiewicz is one of the top Polish photographers specializing in the subject of 360-degree photography not only in theory but also in practice, which allows us to recommend him with full confidence as a trainer for you.

More about the trainer and his portfolio at: https://beautywork.pl/

EXTRAS

The icing on the cake is an offer to make artistic photos and advertising films in the studio by professionals from the outside. Examples of their realizations can be found below.
